Product description
Performance characteristics
Type: Sleeve Roller Chain (Roller can be rotated)
Material: medium carbon alloy steel
|

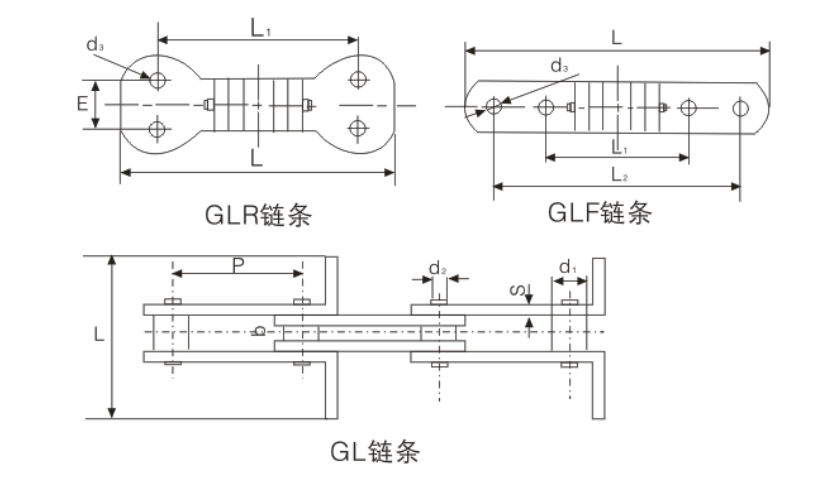

link |
pitch |
inner links inner width |
Roller outer diameter |
a pin calibre |
sprocket breadth |
sprocket thicknesses |
Attachment plate size |
extreme pull tensile load |
||||
|
P |
B1 |
D1 |
D2 |
H |
S |
L |
L1 |
L2 |
E |
D3 |
130 |
|
|
GLR66.5 |
66.5 |
26.5 |
22 |
12 |
30 |
5-6 |
130 |
102 |
|
32 |
9 |
|
|
GLF66.5 |
160-270 |
228 |
|
|||||||||
|
GL 66.68 |
66.68 |
25.22 |
22.23 |
11.1 |
29 |
5 |
167.5 |
143.5 |
|
|
7 |
90 |
|
GLR 68(5) |
68 |
25.22 |
22.23 |
11.1 |
29 |
5 |
122 |
102 |
|
32 |
9 |
90 |
|
GLF76.2 |
76.2 |
30 |
30 |
11.1 |
40 |
6 |
230 |
95 |
195 |
|
9 |
110 |
|
GLR100 |
100 |
38.5
|
36 |
16 |
40 |
6 |
130 |
102 |
|
32 |
9
|
220 |
|
GLF100 |
225-305 |
104 |
194 |
|
||||||||
|
Gl100 |
100 |
29.6 |
22.3 |
11.1 |
29 |
5 |
185.6 |
155.6 |
|
|
9 |
90 |
|
Gl125 |
125 |
32.5 |
28.58 |
14.27 |
42 |
6 |
235.5 |
195.5 |
|
|
9 |
170.28 |
|
GL125(1) |
125 |
32 |
25 |
17 |
60 |
6 |
260-305 |
115 |
235-268 |
|
9 |
220 |
|
Gl160 |
160 |
27 |
32 |
14.27 |
45 |
6 |
290 |
250 |
|
|
9 |
193.5 |
Prev
Prev
Product Application
Processing Industry
Suitable for flour, feed, rice, corn processing, miscellaneous grain processing, oil and grease processing, grain drying and so on.
Warehousing Industry
Suitable for grain storage, granaries and harbour terminals, etc.
Machinery Industry
Suitable for flour, rice, feed, grain drying, etc.
